GB

connected with the corresponding port at the

If the light is equipped with (a) colored LED(s), the measurement values are given for the white light or the white LED. If the light has different energy modes, the measurement is made based on the “energy saving mode”. 2 Calculated value of capacity in watt-hours (Wh). This applies to the delivery state of the battery(-ies) contained in.

supplied charging cable in order to charge

the Accumulator-pack. The other side of the

charging cable (micro USB) must be connected

to the micro USB port on the battery box.Only

the supplied Accumulator battery pack can be

charged with the charger.

The last step is to connect the plug into a

socket (Input: 100 V to 240 V / 50 Hz to 60 Hz).

When charging is completed (after maximum 4

to 5 hours), unplug the charger from the socket

and the charging cable (micro-USB) from the

Accumulator-pack. It is, however, no problem

to continue charging the Accumulator-pack

even it is already full.

Replacement

When you are charging the Accumulator-Pack

of the H7R.2 with the corresponding charger

and charging cable by a USB port (see Section

9) the charging status will be shown by a

glowing LED light. When the battery is still

charging, it will shine red. The light will change

to green when the charging is completed. You

will be unable to use the white LED of H7R.2

while charging.

Instead of connecting the charging cable to the

USB port of the charger, you can also connect

it to a different USB port (5 V / 500 mA) such as

a computer.

While using our optionally available car USB

charger connection (Led Lenser Car Charger:

Item no. 0380), the H7R.2 also can be charged

at the cigarette lighter and sockets in vehicles.

These accessory units match themselves

automatically to the respective input voltage

(12 V ó 24 V). These alternatives are suitable to

charge the Accumulator-pack in case a power

outlet is not available.

Note – Please ensure that there is no short-

circuit at the charging contacts. The charging

contacts may not be touched with moist or

metallic objects.

10. Changing of the Accumulator-Pack / NiMH-

rechargeable batteries / Alkaline batteries

Prior to the changing batteries, please turn off

the H7R.2.

On the back of the battery box, where the

headband is attatched, there is the gate to the

inside of the battery box. Once you open the

battery box, there will be a silk tab that runs

underneth the battery pack. In order to remove

the battery, pull the silk tab and then insert a

new one.

Led Lenser H7r 2 User Manual Pdf

Alkaline batteries can also be inserted, but

then the charger cannot be used!

During insertion, it is always necessary that

it is in the correct direction. Therefore, pay

attention to the polarities (+ and -). Both in the

battery box and also on the Accumulator-Pack

/ alkaline batteries. Otherwise, there is risk

for damaged Accumulators / batteries and a

possible explosion.

The supplied Accumulator-Pack can only be

recharged with the original charger or by a

USB port (see Section 9)!

After replacing the batteries, the cover of the

battery box has to be closed again.

To close the battery box, hold the battery box

cover over the battery box in the right direction,

hook the battery cover above the multi-function

switch and then push the battery cover against

battery box, until you hear a small “click”

sound. Then push the middle of the cover

again, until you hear another “click”. Now the

battery cover is securely closed.

11. Headband

The headband can be washed by water. The

headband can be washed in a washing machine

at 30 °C.

12. Cleaning

To clean, use a dry, lint-free, clean cloth.

If salt water is spilled on the head lamp, it must

Led Lenser H7r 2 User Manual

be immediately entirely removed with such a

cloth and water.

13. Scope of delivery

The H7R.2 headlamp is supplied with the

following accessories:

1 H7R.2 headband

1 charger and plug

1 USB cable, connect the rechargeable battery

and charger for charge

1 battery pack

1 user manual

14. General information batteries /

accumulators

Non rechargeable batteries or other

accumulators that are not of the same type

of accumulator as the one included in with

this product and therefore not allowed to be

charged by the same charger. Never use non

rechargeable batteries and accumulators

together. Always change all nonrechargeable

batteries and accumulators at the same time.

Only use the Accumulator-Pack (scope of

delivery), alkaline batteries AAA / LR03 / Micro

(1.5 V DC) or NiMH-Accumulator AAA / LR03 /

Micro (1.2 V DC) for the H7R.2.

If you intend not to use the item for an extended

period, please take out the Accumulator-Pack,

NiMH-Accumulators or alkaline batteries in

order to avoid damage.

Used batteries and accumulators have to

be taken out the item and disposed of in

accordance with the national laws. The

possibility of short-circuits of accumulators

and batteries must be eliminated and so they

may not be opened, thrown into a fire, or enter

into the human body in any way.

Do not swallow any small parts or batteries/

accumulators that are present. The products

or parts thereof (including batteries /

accumulators) must be stored out of the reach

of children.

For safety and approval reasons (CE), the

product must not be modified and/or changed.

The product is to be used exclusively as an

accumulator or battery powered lamp. If

the H7R.2 is used for any other purpose, or

incorrectly, it can get damaged and a hazard-

free use is no longer guaranteed (danger from

fire, short-circuit, electric shock etc.) and

therefore there will be no liability for harm

anyone or damage to property. The warranty

of the manufacturer is also rendered null and

void.

Advertising
Popular Brands
Popular manuals
Advertising

02

English

|

Page 02-05

GB

We are delighted that you have purchased one

of our products.

Led Lenser H7r 2 User Manual

These are usage instructions to help you

familiarize yourself with your new purchase.

All the documents accompanying the product

must be read attentively before using the

product, preserved carefully and if the product

is transferred to a third party, the documents

must be handed over as well. This ensures that

Led Lenser H7r.2 Manual Pdf

maximum benefit is drawn from the product

and questions from users are anticipated

before they arise.

Above all, comply with the warnings and safety

instructions and dispose of the packaging

material properly.

Additional Information for H7R.2 with “TEST

IT” Function

Your LED LENSER H7R.2 headlamp is packaged

with a “TEST IT” function (item no. 7398). This

allows users to test the brightness while the

product is still in the package. For testing,

simply push the yellow “TEST IT” button on the

front of the package. When testing, please do

not look directly into the light.

The “TEST IT” button is connected to the

battery housing of the H7R.2 via two wires and

should be removed prior to use.

To remove the “TEST-IT” button and wires,

open the battery box rear cover and remove

Led Lenser H7r 2 User Manual Nob

4xAAA alkaline battery (see also “Changing of

the battery“ further below). Separate the two

“TEST IT” button wires from the battery housing

by pulling on each wire until it releases from

the battery housing. Insert the batteries in and

noting the correct polarity. Close the battery

box. Please dispose and recycle the packaging

and “TEST IT” button with the wires according

to the local regulations.

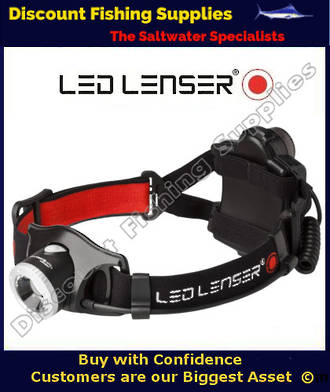

Product

7298,

LED LENSER® H7R.2

7398,

LED LENSER® H7R.2 (Blister)

Version of the operating manual: 1.4

1. Battery set:

1 x Li-ion battery pack 3.7 V (1400 mAh)

4XAAA alkaline battery (Blister)

2. ON and OFF

The H7R.2 has two switches. The front switch

is located on the right side of the headlamp

housing. This switch button is used to turn the

H7R.2 ON/OFF. It is also used to activate the

various Light Programs and Lighting Functions

(see section 5.1) and the “Transport Lock”

function (see Point 7).

The “Multi-function Wheel” switch is located on

the backside at the upper part of the battery

box. This allows you to adjust the brightness

and flash rate infinitely and to change into

different modes. In this switch is also a battery

indicator and the red rear light located (see

Section 5.2).

3. Focus

In the front, narrower region of the headlamp

housing is the reflector lens located. This lens

focused the light of the white LED through our

patented 'Advanced Focus System'.

The reflector lens is held by a plastic ring. You

can rotate that plastic ring using two fingers,

and thus adjust the focus quickly and easily.

This is our Turning Focus, which allows the

adjustment of the light beam’s focus.

Led Lenser M7r

You also can adjust the hinge of the headlamp,

depending on whether you want to illuminate

an area in the distance or in front of you. For

this, you simply tilt the part of the lamp head,

which containing the reflector lens and the

white LED. The gradual detent allows also

intermediate positions.

4. Smart Light Technology (SLT)

Smart Light Technology (SLT) is a program

that consists of computer optimized

microcontrollers which allows our products

to have various lighting functions. The H7R.2

is equipped with this technology and is

therefore able to use various Light Programs

Led Lenser Warranty

and Functions. The front switch at the top of

the lamp head can turn the lamp On and Off,

Led Lenser H7r.2 Instruction Manual

change the brightness, and turn on functions

like the boost mode and others. Pressing the

“Multi-function Wheel' switch on the upper

Led Lenser H7r 2 User Manual 10 1

part of the battery box can turn on the red light.

This “Multi-function Wheel' switch can also be

rotated to further adjust the brightness of your

headlamp light .

5. Light Programs and Light Functions

The H7R.2 is equipped with three LEDs (LED

= Light Emitting Diode), one white LED in the

front housing, and two other red LED’s in the

battery box.

The white LED is very strong and ideal for

normal use. This very bright white light may

not suitable when your eyes have become

accustomed through the dark or low ambient

light.

The red LED is not meant to illuminate a space,

but as a way to be seen or identified (see

Section 5.2).

5.1 Light Program White (Front light)

In H7R.2, there are three different modes (Easy

Low, Easy Power, Signal). The default mode is

Easy Low.

When the product is off, press the “Multi-

function Wheel” switch for 5 second. It will

achieve mode transition. Then white LED will

Led Lenser H7r 2 User Manual 1 3

blink once (3Hz) to indicate that it is mode one;

then blink twice for mode two; and finally blink

thrice for mode three.

a) Light Mode one - Easy Low: when the

product is off, firmly press the front switch

button until it blinks once. The white LED will

glow at its lowest brightness (light function:

Low Power dim light). A second touch to the

button on top of the lamp will turn ion the lamp

to its full brightness (light function: Power

strong light), and third touch will turn the lamp

off.

b) Light Mode two - Easy Power: when the

product is off, firmly press the front switch

until it blinks twice. The white LED will glow at

its fullest brightness (light function: Power). A

second touch to the button on top of the lamp

will turn on the lamp to its lowest brightness

(light function: Low Power), and third touch will

turn the lamp off.

Advertising
Popular Brands
Popular manuals
